ART - SP4x4 PRO USB - power conditioner - LED Metered PDS

*Traduction française à venir*

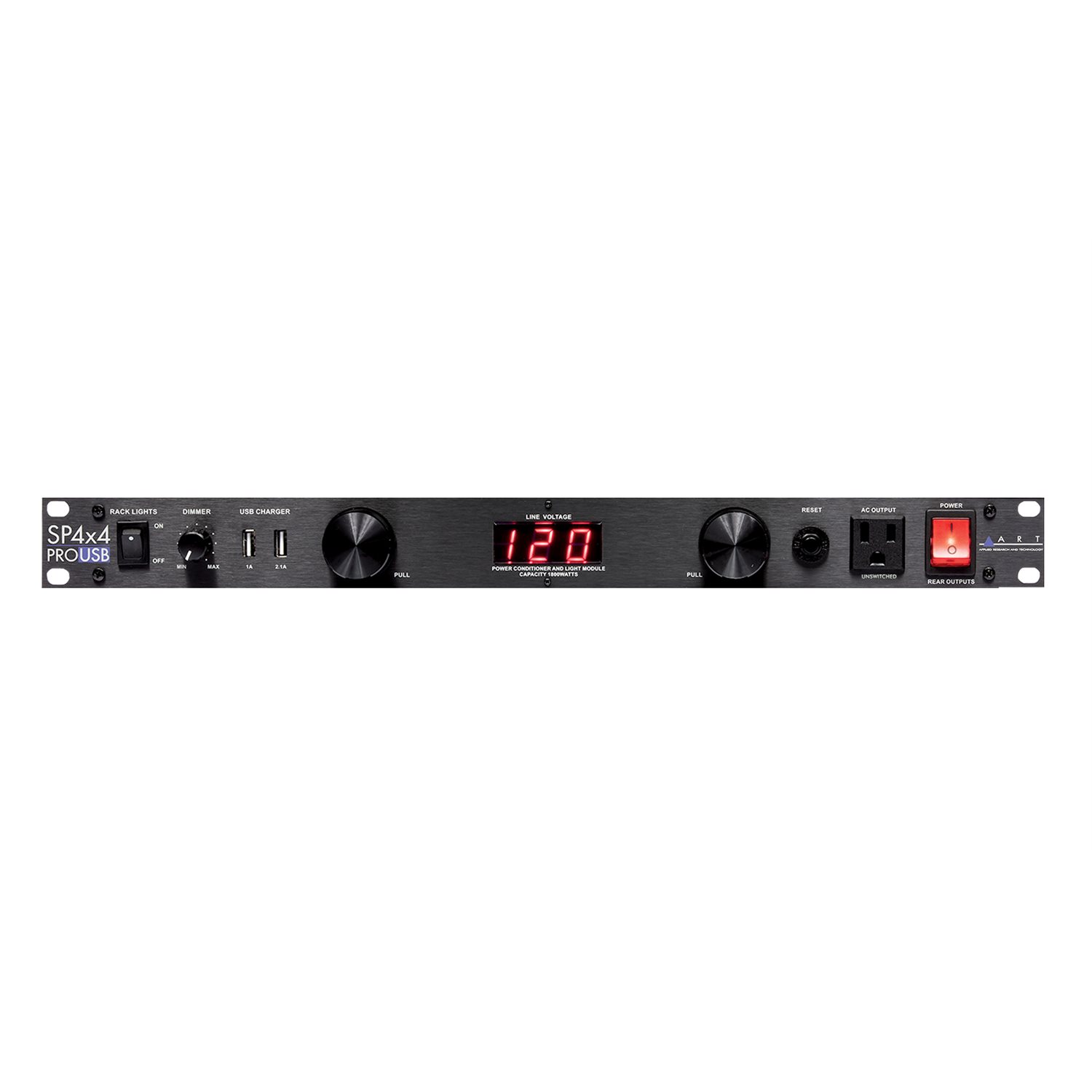

Presenting the 4×4 PRO USB SERIES Power Distribution Systems from ART. Built on the foundation of the popular 4x4s, the PRO USB SERIES are durably constructed, reliable power conditioners for use in many applications. Wherever power management system is required, the 4×4 PRO USB SERIES provide the surge protection you need to keep your rack safe from unwanted disruption.

All PRO USB SERIES models have an additional internal discrete module called APF™ (Advanced Power Filtering) which filters out digital and dimmer hash as well as any high frequency noise that is above the audio range. Some off-the-shelf add-on modules saturate and lose their filtering effectiveness as the load increases, but by using a high power discrete design we were able to create a filter that stays effective over the full operating range.



FEATURES :

- Designed with a power capacity of 1800 watts

- APF with EMI & RFI filtering

- Spacing and alignment of the rear outlets to accommodate various size power plugs and AC adapters

- Surge/spike protection

- Front-mounted unswitched power outlet and an adjustable rear-mounted gooseneck light source for bright illumination behind the rack.



- Power Capacity : 1800 Watts

- Circuit Breaker : 15 Amp Domestic, 8 Amp Export Front Location

- Power Outlets : Rear Outlets (x 8) Front Outlet (x 1)

- USB Charger : 5V/3.1A (OVP&OCP)

- Power Switch : Front Location - On/Off

- Power Switch Illumination : Yes - In "On" Position

- Surge & Spike Protection : Yes

- Power Dissipation : 1800 Joules

- Filtering : APF, EMI & RFI

- Construction : All Steel Chassis

- Light Pipes : SP4x4Pro - 2 Front Pull-Out Shock Mounted w/dimmer

- Metering : SP4x4Pro - Input Voltage

- Dimensions (HWD) : 1.75-inch x 19-inch x 6.5-inch / 44mm x 482mm x 165mm

- Weight : 6.3 lbs. (2.8 kg) SP4x4PRO
